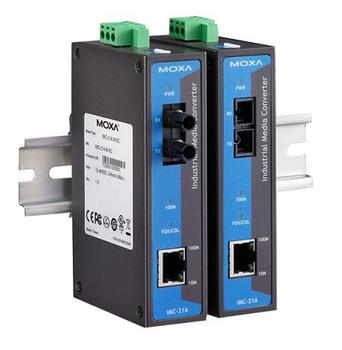

IMC-21A Series
Entry-level industrial 10/100BaseT(X) to 100BaseFX media converters
- Multi-mode or single-mode, with SC or ST fiber connector
- Link Fault Pass-Through (LFP)
- -40 to 75°C operating temperature range (T models)
- DIP switches to select FDX/HDX/10/100/Auto/Force
The IMC-21A industrial media converters are entry-level 10/100BaseT(X) to 100BaseFX media converters designed to provide reliable and stable operation in harsh industrial environments. The converters can operate reliably in temperatures ranging from -40 to 75°C. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The IMC-21A converters are easy to mount on a DIN-Rail or in distribution boxes.
|
• Technology |
|
Standards |
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for Flow Control |
|
• Interface |
|
RJ45 Ports |
10/100BaseT(X) |
|
Fiber Ports |
100BaseFX (SC/ST connectors) |
|
LED Indicators |
Power, 10/100M (TP port), 100M (fiber port), FDX/COL (fiber port) |
|
DIP Switches |
TP port’s 10/100M, Half/Full modes, Force/Auto modes; fiber port’s Half/Full modes, Link Fault Pass-Through (LFP) |
|
• Optical Fiber |
|
|
|
• Physical Characteristics |
|
Housing |
Metal, IP30 protection |
|
Dimensions |
30 x 125 x 79 mm (1.19 x 4.92 x 3.11 in) |
|
Weight |
170 g |
|
Installation |
DIN-Rail mounting |
|
• Environmental Limits |
|
Operating Temperature |
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
|
Storage Temperature |
-40 to 75°C (-40 to 167°F) |
|
Ambient Relative Humidity |
5 to 95% (non-condensing) |
|
• Power Requirements |
|
Input Voltage |
12 to 48 VDC |
|
Input Current |
265 mA @ 12 VDC
135 mA @ 24 VDC
75 mA @ 48 VDC |
|
Connection |
Removable 3-contact terminal block |
|
Overload Current Protection |
1.1 A |
|
Reverse Polarity Protection |
Present |
|
• Standards and Certifications |
|
Safety |
UL 60950-1 |
|
EMC |
CE, FCC |
|
EMI |
FCC Part 15 Subpart B Class A, EN 55022 Class A |
|
EMS |
EN 61000-4-2 (ESD) Level 3
EN 61000-4-3 (RS) Level 2
EN 61000-4-4 (EFT) Level 2
EN 61000-4-5 (Surge) Level 2
EN 61000-4-6 (CS) Level 2 |
|
Shock |
IEC 60068-2-27 |
|
Freefall |
IEC 60068-2-32 |
|
Vibration |
IEC 60068-2-6 |
|
Green Product |
RoHS, CRoHS, WEEE |
|
• MTBF (mean time between failures) |
|
Time |
353,000 hrs |
|
Database |
MIL-HDBK-217F, GB 25°C |
|
• Warranty |
|
Warranty Period |
5 years |
| |
Model No. |
Description |
|
IMC-21A-M-SC |
Industrial 10/100BaseT(X) to 100BaseFX media converter, multi mode, SC fiber connector, -10 to 60°C operating temperature |
|
IMC-21A-M-ST |
Industrial 10/100BaseT(X) to 100BaseFX media converter, multi mode, ST fiber connector, -10 to 60°C operating temperature |
|
IMC-21A-S-SC |
Industrial 10/100BaseT(X) to 100BaseFX media converter, single mode, SC fiber connector, -10 to 60°C operating temperature |
|
IMC-21A-M-SC-T |
Industrial 10/100BaseT(X) to 100BaseFX media converter, multi mode, SC fiber connector, -40 to 75°C operating temperature |
|
IMC-21A-M-ST-T |
Industrial 10/100BaseT(X) to 100BaseFX media converter, multi mode, ST fiber connector, -40 to 75°C operating temperature |
|
IMC-21A-S-SC-T |
Industrial 10/100BaseT(X) to 100BaseFX media converter, single mode, SC fiber connector, -40 to 75°C operating temperature |
| Maksimal dataoverføringshastighet | 100 Mbit/s |
| Omformer-inngangsgrensesnitt | 100Base-TX,10Base-T |
| Omformer-utgangsgrensesnitt | 100Base-FX |
| Nettverksstandard | IEEE 802.3,IEEE 802.3u,IEEE 802.3x |
| Tilkoblingsteknologi | Koblet med ledninger (ikke trådløs) |
| Antall ethernets-/bredbåndstilkoblinger (RJ-45) | 1 |
| Fibre Channel-porter | 1 |
| Fiberoptisk kontakt | SC |
| Maksimal overføring avstand | 40000 m |
| Bølgelengde | 1310 nm |
| Fibermodusstruktur | Enkeltmodus |
| Tx effekt (min.) | -5 dBmW |
| Følsomhet | -34 dBmW |
| Koblingsbudsjett | 29 dB |
| Gjennomsnittstid mellom feil (MTBF) | 353000 timer |
| Intern | Nei |
| LED-indikatorer for kommunikasjon | Ja |
| Produktfarge | Svart, Blå |
| Husmateriale | Metall |
| Internasjonal beskyttelses (IP)-kode | IP30 |
| RoHS-overholdelse | Ja |
| Sikkerhet | UL 60950-1 |
| ISV-sertifiseringer | WEEE |
| Vekt | 170 g |
| Driftstemperaturområde | -10 - 60 °C |
| Oppbevaringstemperaturomåde (Celsius) | -40 - 75 °C |
| Luftfuktighetsområde ved drift | 5 - 95% |
| Fysiske mål (BxDxH) | 30 x 79 x 125 mm |
